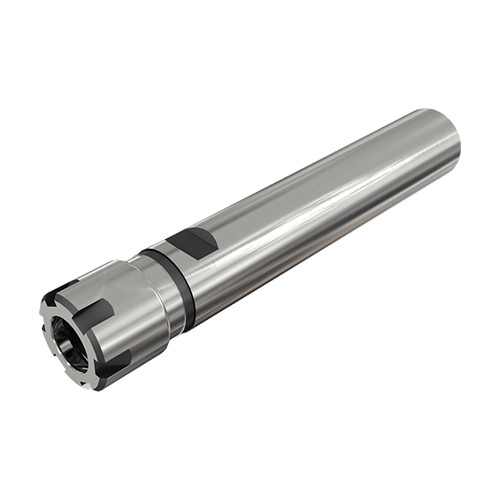

ST 20X150 ER16 M
DIN 6499 ER mini collet chucks with cylindrical shanks.

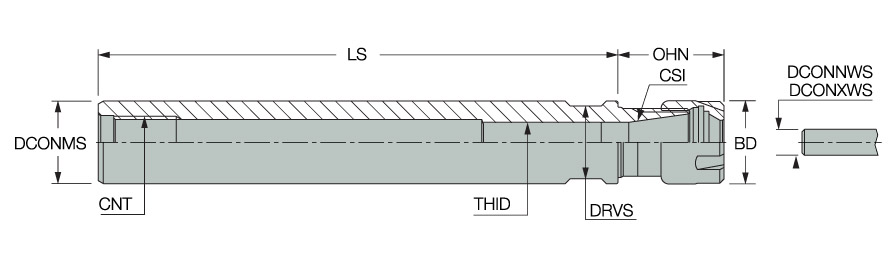

| Shank Size (SS) | 20 | Coolant Supply Property (CSP) | Through Hole |
| Connection Size (CSI) | ER16 | Connection Diameter Minimum Workpiece Side (DCONNWS) | 0.5 mm |
| Body Diameter (BD) | 22 mm | Connection Diameter Maximum Workpiece Side (DCONXWS) | 10 mm |
| Protruding Length (LPR) | 125 mm | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 20 mm | Drive Size (DRVS) | 17 mm |
| Shank Length (LS) | 150 mm | Body Material | Steel |
| Tool Type | Cylindrical Shanks |
Product Features
| Family Description | DIN 6499 ER mini collet chucks with cylindrical shanks. | Country of Origin | Israel |
Shipping Info
Package Weight
0.734
