CAT50 SEM 3/4X1.500
ISO 3937 Shell mill holders with Caterpillar form ADB tapered shanks.

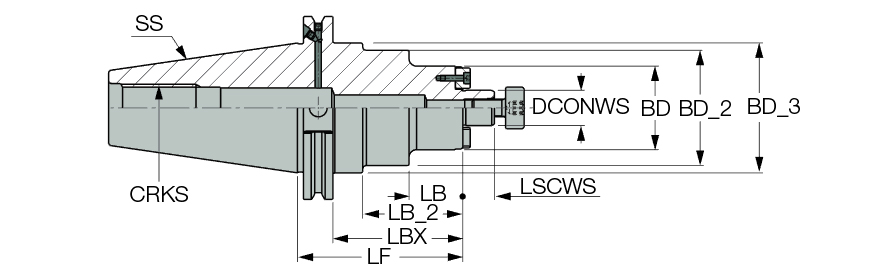

| Connection Diameter Machine Side (DCONMS) | 50″ | Clamping Length Workpiece Side (LSCWS) | 0.669″ |
| Connection Diameter Workpiece Side (DCONWS) | 3/4″ | Material | Steel |
| Shank Size (SS) | 50 | Shell Mill Pilot Size | 3/4″ |
| Functional Length (LF) | 1-1/2″ | Flange Diameter (DF) | 3.380″ |
| Body Length (LB) | 1-1/2″ | Tool Type | DIN 69871 |
| Shank Standard | CAT | Measurement Type | Inch |
| Shank Type | CAT | Body Material | Steel |
| Overhang Length (L2) | 6″ | Protruding Length (LPR) | 1.500″ |
| Coolant Supply Property (CSP) | External | Connection Code Machine Side (CCMS) | CAT |
| Hex Size | 5/8″ |
Product Features
| Family Description | ISO 3937 Shell mill holders with Caterpillar form ADB tapered shanks. | Country of Origin | Turkey |
Shipping Info
LocalField10
0
Package Weight
7.396
