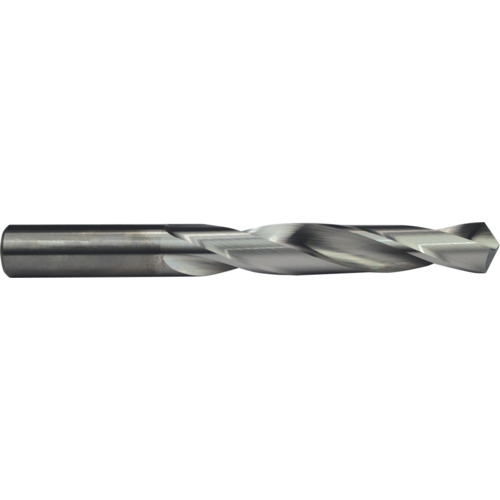

M Dia. x 0.295″ Shank × 2-3/8″ Flute Length × 3-3/4″ OAL, 5XD, 118°, Uncoated, 2 Flute, External Coolant, Round Solid Carbide Drill
Alternate Manufacture # 24577
| Drill Bit Size / Cutting Diameter (DC) | M | Cutting Edge Material | Carbide |
| Decimal Equivalent | 0.295″ | Tool Type | Jobber Drill |
| Drill Bit Size / Cutting Diameter (DC) - Letter / Wire Gauge | M | Point Shape | Standard |
| Length Group | 5xD | Measurement Type | Letter |
| Coating | Uncoated | Series/List # | 204 |
| Connection Diameter Machine Side (DCONMS) | 0.295″ | Usable Length (LU) | 2-3/8″ |
| Coolant Supply Property (CSP) | External | Length Chip Flute (LCF) | 2-3/8″ |
| Point Angle (SIG) | 118 Degrees | Overall Length (OAL) | 3-3/4″ |
| Flute Helix Angle (FHA) | 21 Degrees | Flute Count (NOF) | 2 |
| Shank Type | Round |
Product Features
| Family Description | Alternate Manufacture # 24577 | Country of Origin | UNITED STATES |
| Remarks | •118° Point 21° helix - Series 254 •Recommended for drilling cast iron, aluminum, bronze and magnesium alloys and other abrasive, but easily machined materials •Designed to allow high feedrates with good chip flow •Micrograin 10% cobalt grade •Four facet drill point minimizes drill wander and assures accurately sized holes |
Shipping Info
Package Length
3.75000
Package Width
.39400
Package Height
.39400
Package Weight
.092
