RM-BN8-1.0000-H7LB IC08

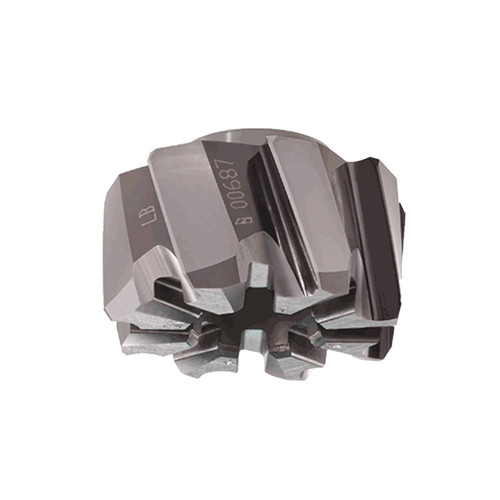

Interchangeable left-hand flute solid carbide reaming heads (shell reamers) with a quick change bayonet mechanism for H7 hole tolerance high speed reaming through holes.

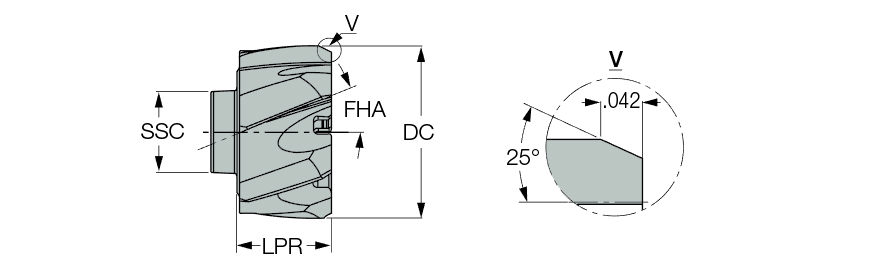

| Cutting Diameter (DC) | 1″ | Cutting Edge Material | Carbide |
| Cutting Edge Length (L) | 0.508″ | Coating | Uncoated |
| Insert Seat Size Code (SSC) | BN8 | Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 8 | Tool Type | Shell Reamers / BAYO Heads |
| Flute Helix Angle (FHA) | 20 Degrees | Measurement Type | Inch |
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Grade | IC08 |
| Application | | Stacked Plates | Through & Axial Groove | Through & Perpendicular Holes | Through & Radial Groove | Through Hole | | Body Material | Carbide |
Product Features
| Family Description | Interchangeable left-hand flute solid carbide reaming heads (shell reamers) with a quick change bayonet mechanism for H7 hole tolerance high speed reaming through holes. | Country of Origin | Israel |

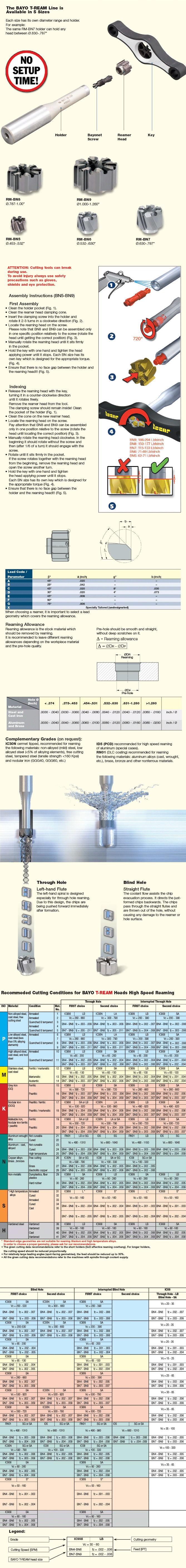

| Remarks | For user guide, click on More Info |
