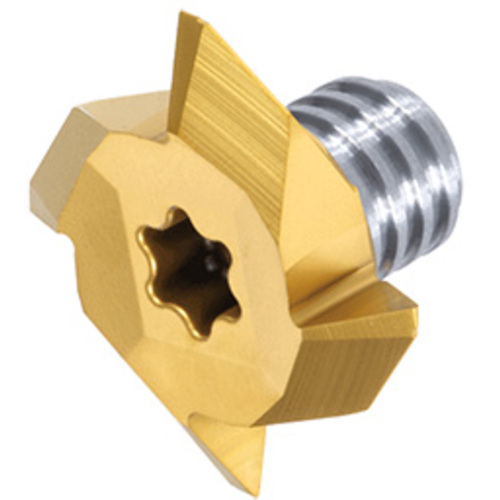

VTR220L28IS30-4S08 GH730

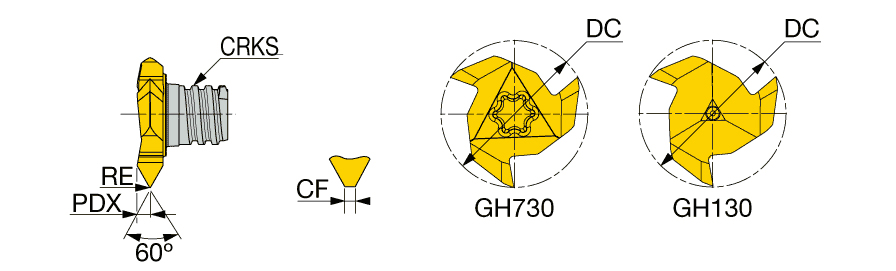

Interchangeable solid carbide milling heads for 60 deg partial profile thread milling.
| Connection Thread Nominal Size Machine Side (THSZMS) | S08 | Tool Type | Solid carbide thread mills |
| Cutting Diameter (DC) | 0.8543″ | Threads per Inch Maximum (TPIX) | 5.6 Thrd/in |
| Flute Count (NOF) | 4 | Threads per Inch Minimum (TPIN) | 8.5 Thrd/in |
| Coating | TiCNO | Thread Pitch Minimum (TPN) | 2.5 mm |
| Grade | GH730 | Thread Pitch Maximum (TPX) | 4 mm |
| Corner Radius (RE) | 0.0079″ | Functional Length (LF) | 0.111″ |
| Applicable Material | | Steel | Stainless Steel | | Measurement Type | Inch |
| Application | | Ext. Thread Milling | Int. Thread Milling | | Body Material | Carbide |
| Cutting Edge Material | Carbide |
Product Features
| Family Description | Interchangeable solid carbide milling heads for 60 deg partial profile thread milling. | Country of Origin | ISRAEL |
| Remarks | Torque: Recommended torque (Nm) for clamping |
Shipping Info
Package Weight
0.000
