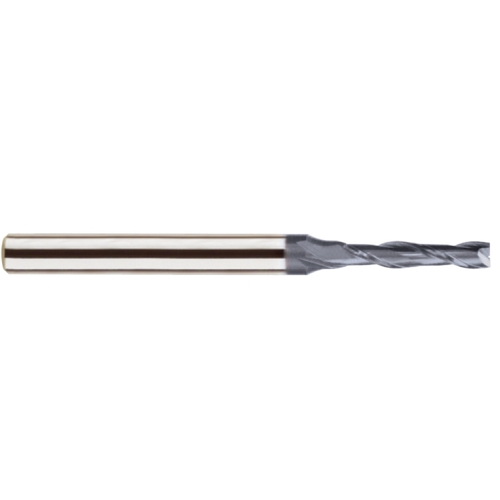

Square End End Mill; 5/16″ Dia. × 1″ LOC × 5/16″ Shank Dia. × 3-1/8″ OAL ; 2 FL ; Carbide ; AlCrN ; Series GMF24
| Cutting Diameter (DC) | 5/16″ | End Shape | Square End |
| Connection Diameter Machine Side (DCONMS) | 5/16″ | Applicable Material | | Steel | |
| Depth of Cut Maximum (APMX) | 1″ | Style | Square End with Long Length |
| Overall Length (OAL) | 3-1/8″ | Decimal Equivalent | 0.3125″ |
| Cutting Edge Material | Carbide | Measurement Type | Inch |
| Coating | AlCrN | Series/List # | GMF24 |
| Flute Count (NOF) | 2 | Cutting Direction (HAND) | Right Hand |
| Flute Helix Angle (FHA) | 30 Degrees | Center Cutting | Yes |
| Shank Type | Round |
Product Features
| Country of Origin | JP |
Shipping Info
Package Length
4.375
Package Width
0.625
Package Height
0.625
Package Weight
0.119
