TECA060H3-09/30C06CF-R02 KS15F

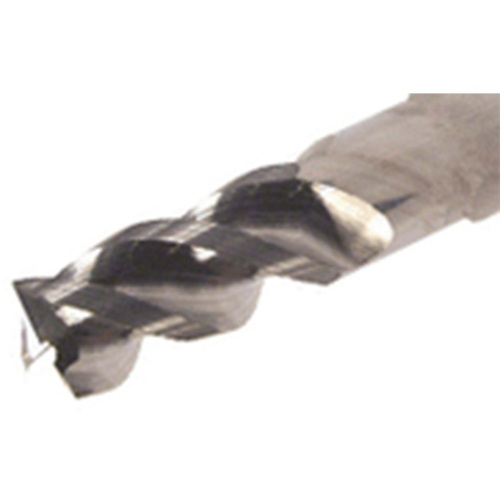

3 flute endmill, 39 deg -41 deg variable helix, center cutting edge, for aluminium machining

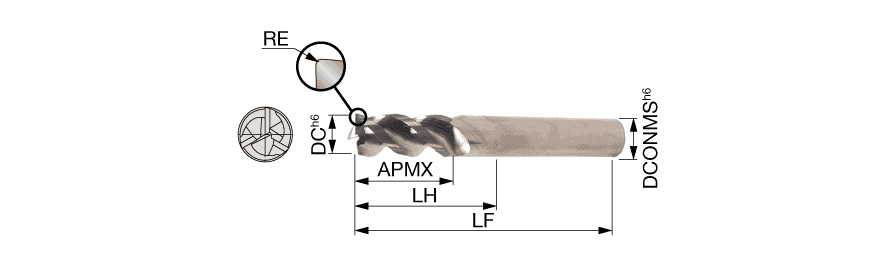

| Cutting Diameter (DC) | 6 mm | Applicable Material | | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Application | | Shoulder Milling | |
| Depth of Cut Maximum (APMX) | 9 mm | Corner Radius (RE) | 0.2 mm |
| Overall Length (OAL) | 65 mm | Grade | KS15F |
| Cutting Edge Material | Carbide | Head Length (LH) | 30 mm |
| Coating | Uncoated | Neck Length (LN) | 30 mm |
| Flute Count (NOF) | 3 | Body Material | Carbide |
| Shank Type | Round | Measurement Type | Metric |
| End Shape | Corner Radius |
Product Features
| Family Description | 3 flute endmill, 39 deg -41 deg variable helix, center cutting edge, for aluminium machining | Country of Origin | ISRAEL |
Shipping Info
Package Weight
0.060
