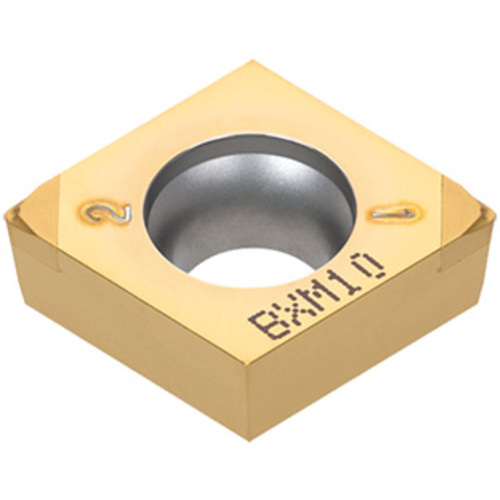

2QP-CCGT 21.51 HP BXA10
Positive 7 deg relief angle, G class, 80 deg rhombic CBN insert with chipbreaker for finishing of hardened steel
| Applicable Material | | Hard Materials | | Min D.O.C. | 0.0012″ |
| Application | | Inserts | | Depth of Cut Maximum (APMX) | 0.0087″ |

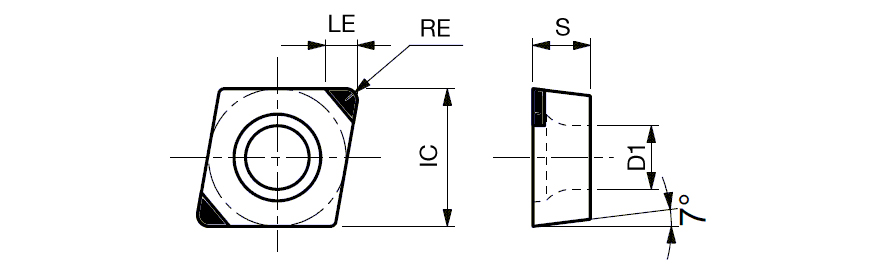

| Corner Radius (RE) | 0.016″ | Min. Turning Feed (ft(min)) | 0.0012 ″/rev |
| Cutting Edge Length (L) | 0.256″ | Max. Turning Feed (ft(max)) | 0.0079 ″/rev |
| Insert Thickness (S) | 0.094″ | Clearance Angle Major (AN) | 7 Degrees |
| Inscribed Circle Diameter (IC) | 1/4″ | Cutting Direction (HAND) | Neutral |
| Cutting Edge Material | PCBN | Chip Breaker Type | Posi-HP |
| Coating | TiAlN+TiCN | Measurement Type | Inch |
| Grade | BXA10 | Body Material | Carbide |
| Fixing Hole Diameter (D1) | 0.11″ | Cutting Edge Effective Length (LE) | 0.091″ |
| Tool Type | Turn Positive Inserts |
Product Features
| Family Description | Positive 7 deg relief angle, G class, 80 deg rhombic CBN insert with chipbreaker for finishing of hardened steel | Country of Origin | JAPAN |
| Remarks | The last letter of designation means as below. HP : Standard honing FW HP, MW HP, WL HP : Wiper |
Shipping Info
Package Weight
0.024
