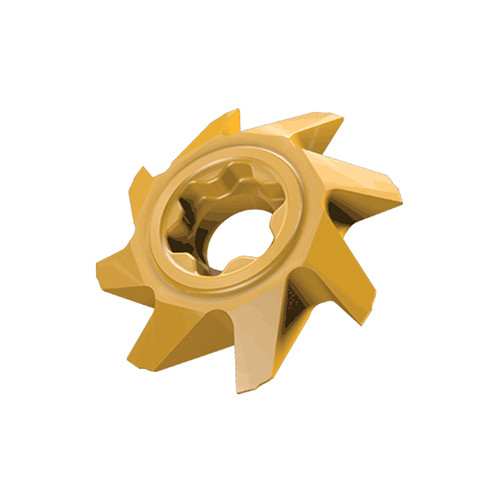

SD TRD32-M60-6P-SP15 IC908
Interchangeable solid carbide heads for 60° partial profile thread milling.

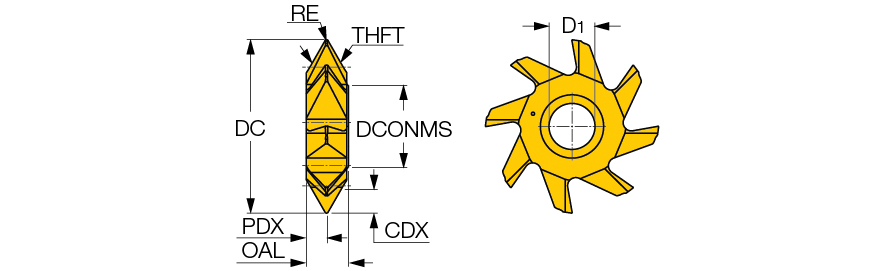

| Thread Standard | THFT | | Tool Type | Solid "T" slot cutters |
| Depth of Cut Maximum (APMX) | 0.492″ | Functional Length (LF) | 0″ |
| Coating | TiAlN | Measurement Type | Inch |
| Grade | IC908 | Overall Length (OAL) | 0.303″ |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Body Material | Carbide |
| Application | | External Thread Milling | Internal Thread Milling | | Thread Form Type (THFT) | VP60 |
| Cutting Edge Material | Carbide |
Product Features
| Family Description | Interchangeable solid carbide heads for 60° partial profile thread milling. | Country of Origin | Israel |
| Remarks | DIN13 , ISO 68-1, ISO 965 (1&2) - Internal tolerance: 6H, External tolerance: 6g ANSI/ASME B1.1 - Internal tolerance: 2B, External tolerance: 2A |
Shipping Info
Package Weight
0.054
