SD TRD40-W55-3T-SP17 IC908

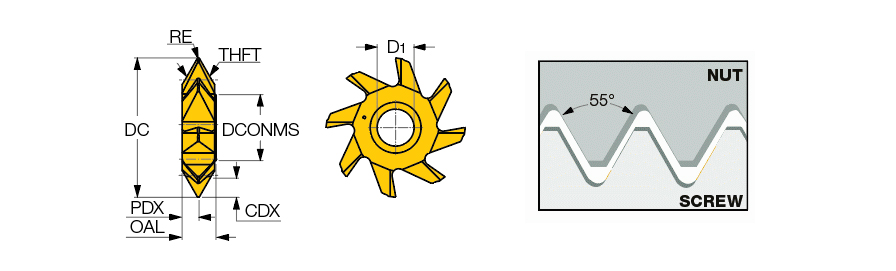

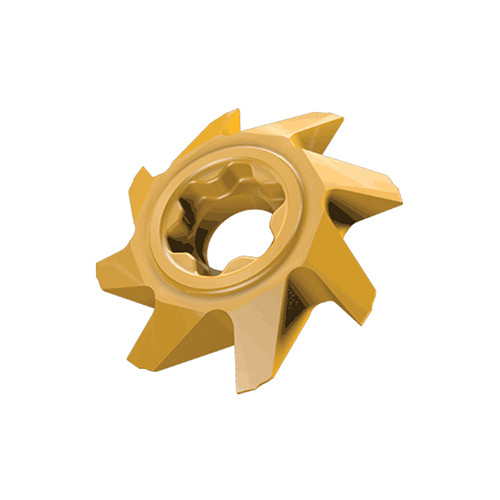

Interchangeable solid carbide heads for 55° partial profile thread milling.
| Thread Standard | THFT | | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.492″ | Functional Length (LF) | 0″ |
| Coating | TiAlN | Measurement Type | Inch |
| Grade | IC908 | Overall Length (OAL) | 0.374″ |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Body Material | Carbide |
| Application | | External Thread Milling | Internal Thread Milling | | Thread Form Type (THFT) | VP55 |
Product Features
| Family Description | Interchangeable solid carbide heads for 55° partial profile thread milling. | Country of Origin | Israel |
| Remarks | B.S.84 Internal & External tolerance: Medium class |
Shipping Info
Package Weight
0.192
