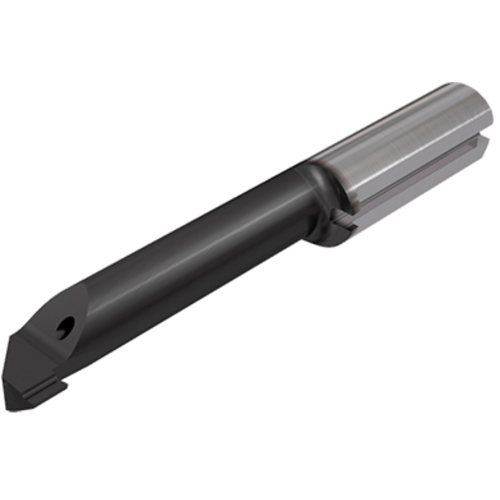

PICJ RG20D50R00-15 IC908
Inserts with inner coolant channel for grooving and turning, Dmin .157″

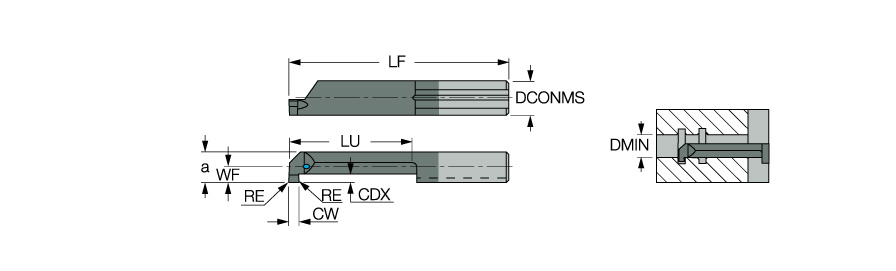

| Connection Diameter Machine Side (DCONMS) | 0.197″ | Grade | IC908 |
| Corner Radius (RE) | 0″ | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Cutting Width (CW) | 0.079″ | Tool Type | Solid Carbide Turn Tool |
| Cutting Depth Maximum (CDX) | 0.039″ | Minimum Bore Diameter (DMIN) | 0.197″ |
| Overall Length (OAL) | 1.181″ | Front End Width (a) | 0.173″ |
| Cutting Direction (HAND) | Right Hand | Measurement Type | Inch |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Coating | TiAlN |
Product Features
| Family Description | Inserts with inner coolant channel for grooving and turning, Dmin .157″ | Country of Origin | Israel |
| Remarks | All carbide bars with sharp corners Specify right- or left-hand bars PICJ items are suitable for PICCO/MG PCO, PICCO ACE, SC-PICCO type holders only |
Shipping Info
LocalField10
0
Package Weight
9
