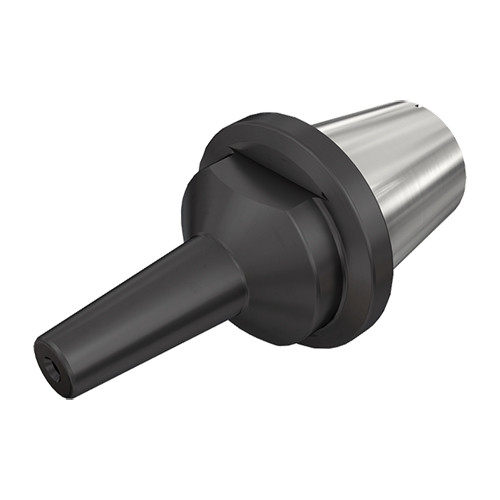

ER32 SRF 8X85
SHRINKIN thermal shrink chuck with a CLICKIN quick change adaptation. To be used for carbide tools only.

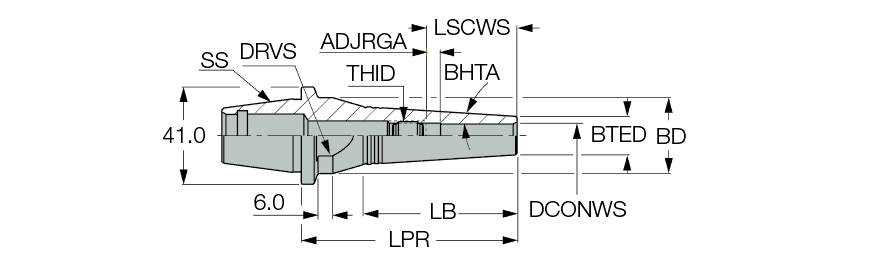

| Connection Diameter Machine Side (DCONMS) | 32 mm | Shank Type | Round |
| Connection Diameter Workpiece Side (DCONWS) | 8 mm | Series/List # | SHRINK |
| Shank Size (SS) | 32 SRF | Measurement Type | Metric |
| Body Length (LB) | 60.5 mm | Drive Size (DRVS) | 27 mm |
| Protruding Length (LPR) | 85 mm | Tool Type | Spring Collets |
| Overall Length (OAL) | 116 mm | Body Material | Steel |
Product Features
| Family Description | SHRINKIN thermal shrink chuck with a CLICKIN quick change adaptation. To be used for carbide tools only. | Country of Origin | Israel |
| Remarks | Tightening torque: 24 Kgxm For carbide tools only |
Shipping Info
Package Weight
0.785
