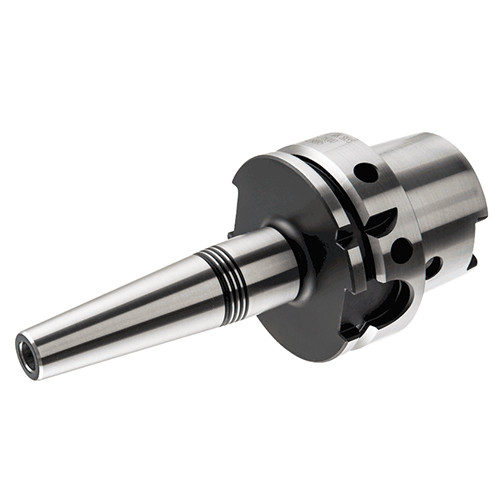

HSK A63 SRK 3/16X2.000
SHRINKIN, thermal chucking collets with HSK DIN69893 Form A tapered shanks for solid carbide tools only.

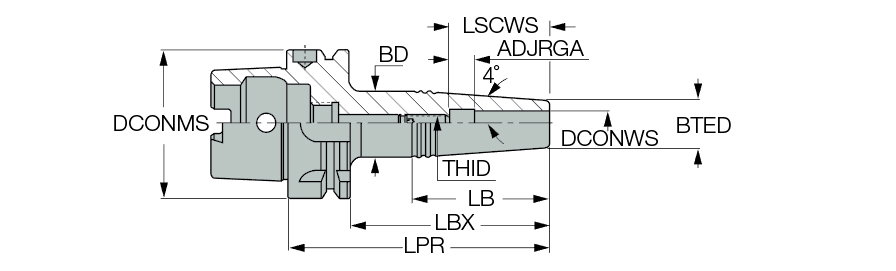

| Connection Diameter Machine Side (DCONMS) | 2.48″ | Shank Standard | HSK A |
| Connection Diameter Workpiece Side (DCONWS) | 0.187″ | Series/List # | SHRINK |
| Shank Size (SS) | 63 | Measurement Type | Inch |
| Body Length (LB) | 2″ | Tool Type | HSK |
| Protruding Length (LPR) | 3.024″ | Body Material | Steel |
| Overall Length (OAL) | 4.284″ | Connection Code Machine Side (CCMS) | HSK |
Product Features
| Family Description | SHRINKIN, thermal chucking collets with HSK DIN69893 Form A tapered shanks for solid carbide tools only. | Country of Origin | Israel |
| Remarks | A cooling tube must be used with all coolant through HSK spindles (to be ordered separately). Remove preset screw for coolant through. For shank dimensions, click on More Info. |
Shipping Info
LocalField10
0
Package Weight
1.587
