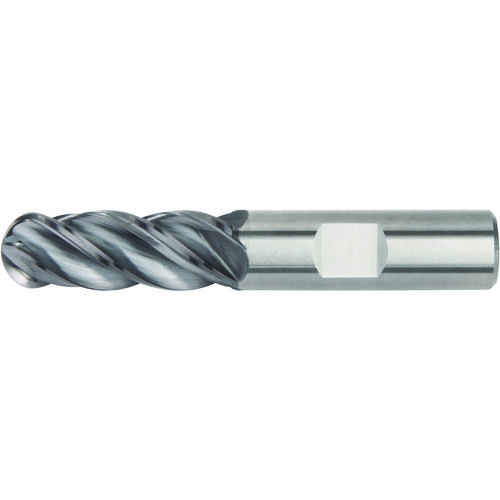

5/8″ Dia. × 5/8″ Shank × 1-1/4″ DOC × 3-1/2″ OAL, Carbide AlTiN, 4 Flute, CW|38° Helix, Weldon, Ballnose End Mill
| Cutting Diameter (DC) | 5/8″ | Flute Helix Angle (FHA) | CW|38 Degrees |
| Connection Diameter Machine Side (DCONMS) | 5/8″ | Shank Type | Weldon |
| Depth of Cut Maximum (APMX) | 1-1/4″ | Usable Length (LU) | 1-1/4″ |
| Overall Length (OAL) | 3-1/2″ | Corner Radius (RE) | 7.94 mm |
| Cutting Edge Material | Carbide | Grade | WP15PE |
| Coating | AlTiN | End Shape | Ball Nose |
| Flute Count (NOF) | 4 | Decimal Equivalent | 0.625″ |
Product Features
| Country of Origin | DE |
Shipping Info
Package Weight
.5622
