CAT40 DC J6X1.500

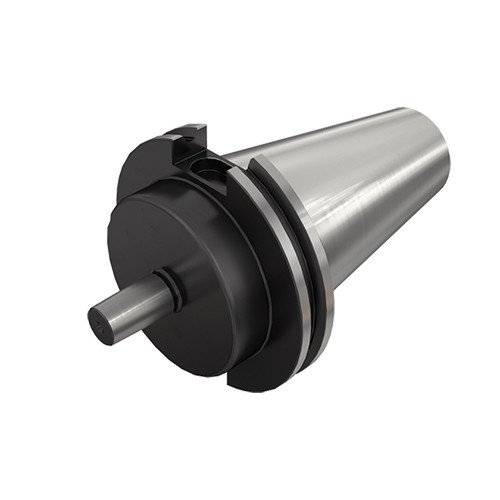

Jacobs drill chuck tapered adapters with Caterpillar tapered shanks.

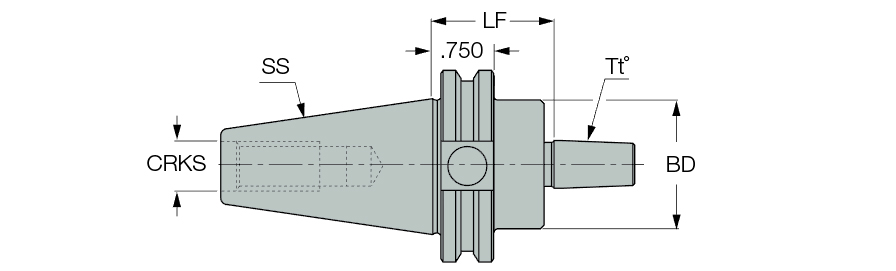

| Shank Size (SS) | 40 | Connection Diameter Workpiece Side (DCONWS) | 0.559″ |
| Protruding Length (LPR) | 1-1/2″ | Connection Retention Knob Thread Size (CRKS) | 5/8-11 |
| Body Diameter (BD) | 1.752″ | Tool Type | DIN 69871 |
| Connection Size Work Piece Side (DCONWS) | 6JT | Measurement Type | Inch |
| Shank Standard | CAT | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 40″ | Connection Code Machine Side (CCMS) | CAT |

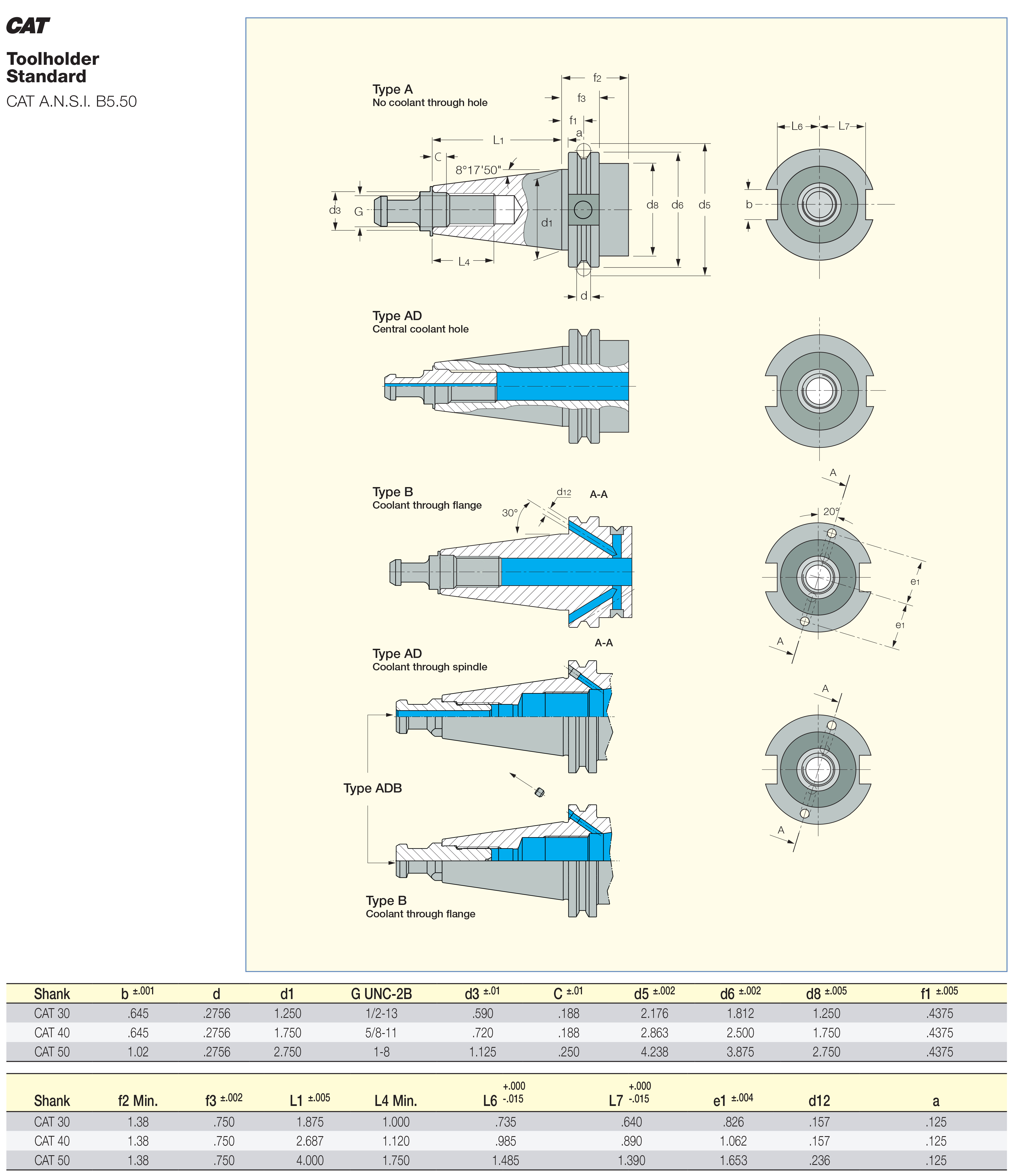

| Application | | CAT A.N.S.I B5.50 | Drill Chuck Arbor | |
Product Features
| Family Description | Jacobs drill chuck tapered adapters with Caterpillar tapered shanks. | Country of Origin | Turkey |
Shipping Info
Package Weight
2.509
