| Style | NC Spotting | Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) | 0.787″ | Application | | Drilling | |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 0.787″ | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Decimal Equivalent | 0.25″ | Flute Length | 1″ |
| Point Angle (SIG) | 90 Degrees | Point Diameter (PDD) | 1/4″ |
| Angle | 90 Degrees | Measurement Type | Inch |

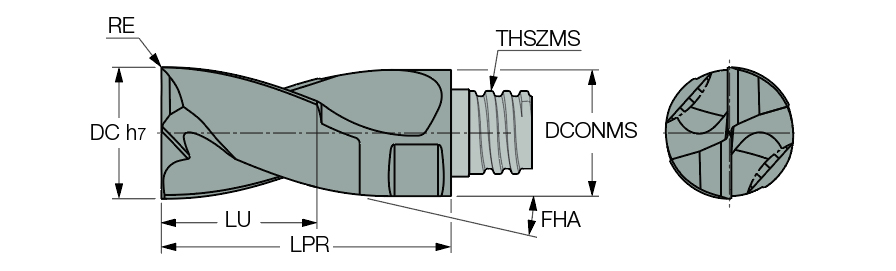

| Protruding Length (LPR) | 1.614″ | Tool Type | solid carbide Drills |
| Overall Length (OAL) | 4″ | Series/List # | 1441 |
| Connection Thread Nominal Size Machine Side (THSZMS) | T12 | Grade | IC908 |
| Shank Type | Round | Body Material | Carbide |
| Coating | TiAlN | Connection Code Machine Side (CCMS) | MultiMaster |
Product Features

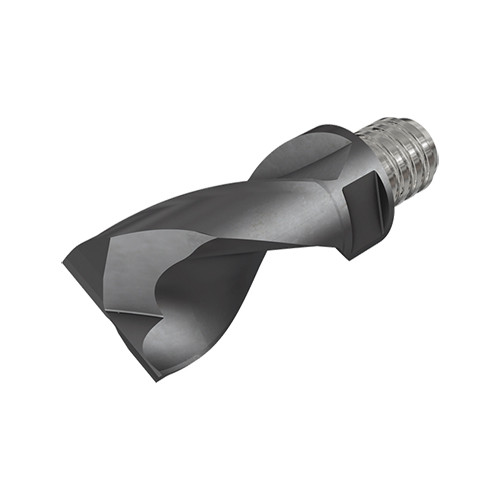

| Family Description | MULTI-MASTER exchangeable solid carbide flat bottom drill heads | Country of Origin | Israel |
| Remarks | For Clamping keys (to be ordered separately), tightening torques and clamping instructions, click on More Info. Do not apply lubricant to the threaded connection. |
Shipping Info
Package Weight
0.315
