| Thread Diameter Size (TDZ) | 5/16″ | Applicable Material | | Steel | Stainless Steel | |
| Threads per Inch (TPI) | 24 | Cutting Edge Material | HSSE |
| Thread Standard | UNF | Thread Tolerance Class (TCTR) | H3 |
| Overall Length (OAL) | 6″ | Chamfer | 3.5P-4.5P |
| Usable Length (LU) | 1.688″ | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 0.317″ | Thread Size | 5/16″ - 24 |
Product Features

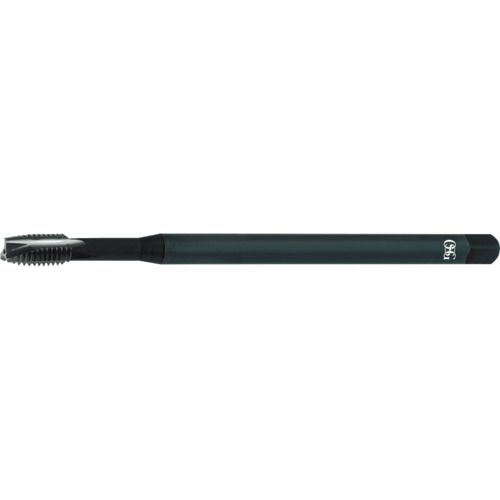

| Remarks | •EXOTAP® VA-3 Spiral Point Taps - Long Shank •A special relief combined with the flute construction provides free cutting, rapid chip removal in stainless steel •List 397 | Country of Origin | Mexico |
Shipping Info
Package Length
6.00000
Package Width
.50000
Package Height
.50000
Package Weight
0.15
